CBP100 Barrier Strip Terminal Blocks, 8.25mm pitch, 15A 300VAC
NO： CBP100
Description： CBP100 Series Barrier Strip Terminal Blocks, 8.25mm pitch, 15A 300VAC, Accepts wire range 22~12 AWG, 2- to 32-Pole Single row PCB Terminal Strip.
  Barrier Terminal BlocksBarrier StripsPCB Terminal BlocksTerminal StripTerminal Blocks

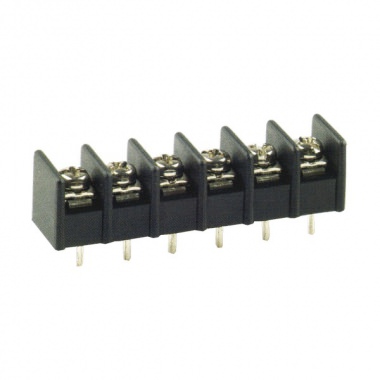

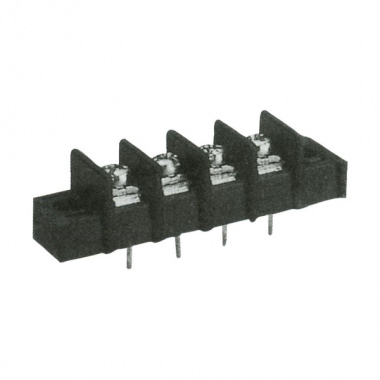

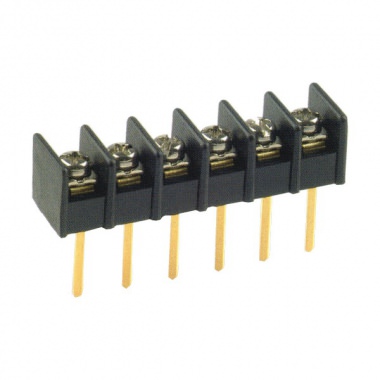

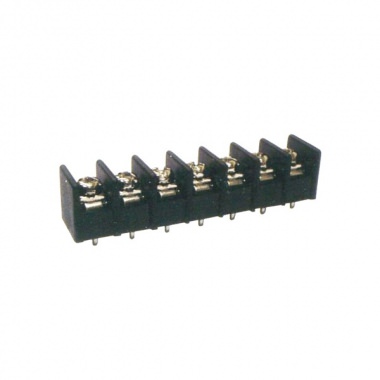

CBP100 Barrier Strip Terminal Blocks 8.25mm pitch, 15A 300VAC


CBP100 Barrier Strip Terminal Blocks



  1. Product Type: Barrier Strip
  2. Model Number: CBP100
  3. Rating: 15A 300VAC
  4. Terminal: Brass, 0.8t, Tin Plated
  5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  6. Screw: Steel, M3, Nickel Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~12 AWG
  11. Max. Torque Value: 10Kg/cm
  12. Poles: 2P~32P
  13. Pitch: 8.25mm
  14. Place of Origin: Taiwan



CBP100 Barrier Strip Terminal Blocks
