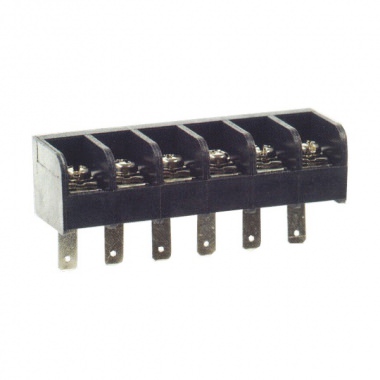

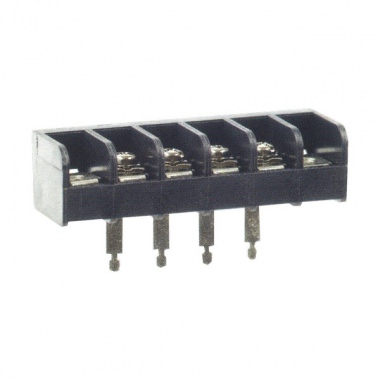

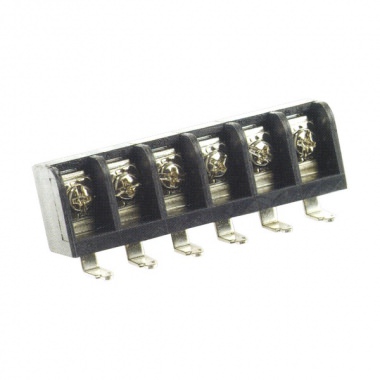

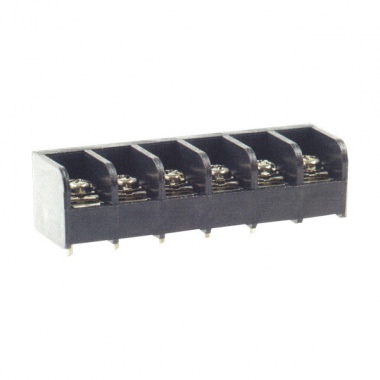

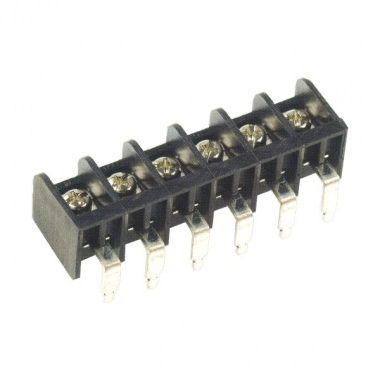

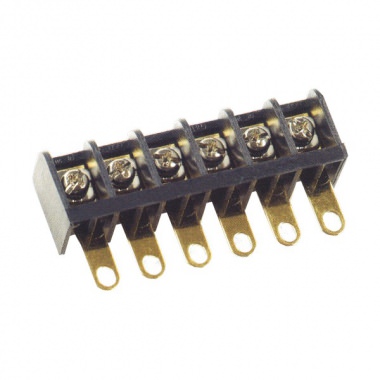

CBP50 Tri-Barrier Strip Terminal Blocks 11mm pitch, 15A 300VAC


Product Type: Barrier Strip
Barrier Style: Single Row, Tri-Barrier
Model Number: CBP50
Rating: 15A 300VAC
Terminal: Brass, 0.8t, Tin Plated
Body Material: Plastic NYLON 66, Black (UL 94V-0)
Screw: Steel, M4, Nickel Plated
Working Temperature: -40˚C to +105˚C
Insulation withstand Voltage: AC2000V at 1 min
Insulation resistance: 500MΩ or more at DC 500V
Wire Range: 22~12 AWG
Max. Torque Value: 18Kg/cm
Poles: 2P~32P
Pitch: 11mm
Place of Origin: Taiwan
