CBP140 Tri-Barrier Strip Terminal Blocks, 6.35mm pitch, 10A 300VAC
NO： CBP140
Description： CBP140 Series Tri-Barrier Strip Terminal Blocks, 6.35mm pitch, 10A 300VAC, Accepts wire range 22~12 AWG, 2- to 32-Pole Single row PCB Terminal Strip.
  Tri-Barrier StripsBarrier StripsPCB Terminal BlocksBarrier Terminal BlocksTerminal Blocks

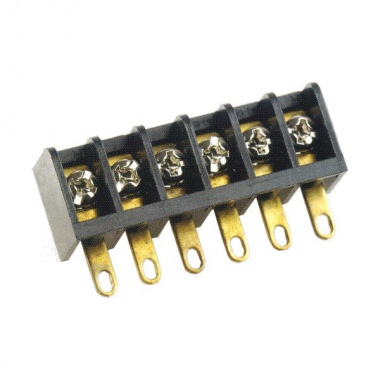

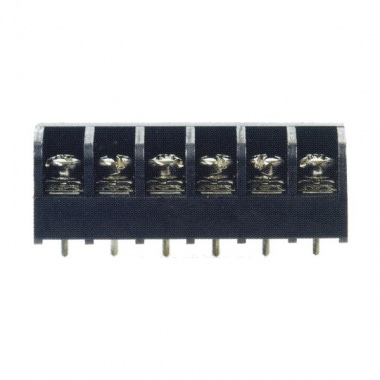

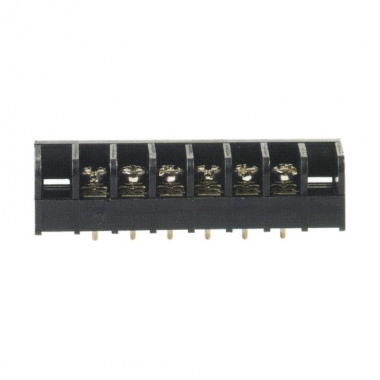

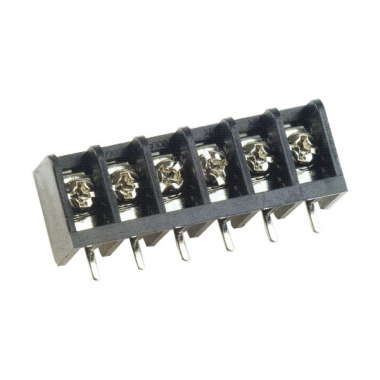

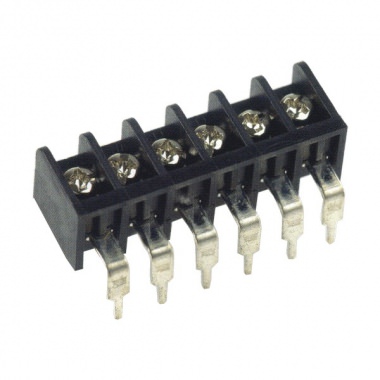

CBP140 Tri-Barrier Strip Terminal Blocks 6.35mm pitch, 10A 300VAC


CBP140 Tri-Barrier Strip Terminal Blocks



  1. Product Type: Barrier Strip
  2. Barrier Style: Single Row, Tri-Barrier
  3. Model Number: CBP140
  4. Rating: 10A 300VAC
  5. Terminal: Brass, 0.8t, Tin Plated
  6. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  7. Screw: Steel, M3, Nickel Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC 500V
  11. Wire Range: 22~12 AWG
  12. Max. Torque Value: 10Kg/cm
  13. Poles: 2P~32P
  14. Pitch: 6.35mm
  15. Place of Origin: Taiwan

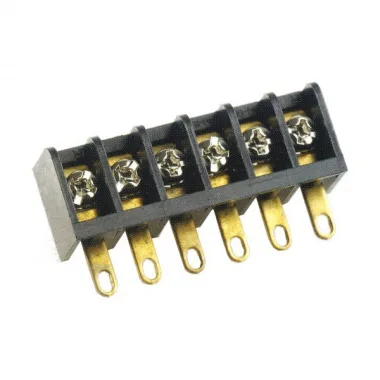

CBP140 Tri-Barrier Strip Terminal Blocks
