CBP110 Dual Level PCB Barrier Terminal Blocks, 8.25mm pitch, 15A 300VAC
NO： CBP110
Description： CBP110 Series Dual Level PCB Barrier Terminal Blocks, 8.25mm pitch, 15A 300VAC, Accepts wire range 22~12 AWG, 2x2P~2x26P Dual-Barrier.
  Dual Level Terminal BlocksBarrier Terminal BlocksTerminal BlocksBarrier StripsPCB Terminal Blocks

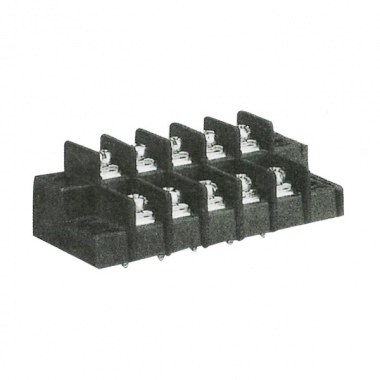

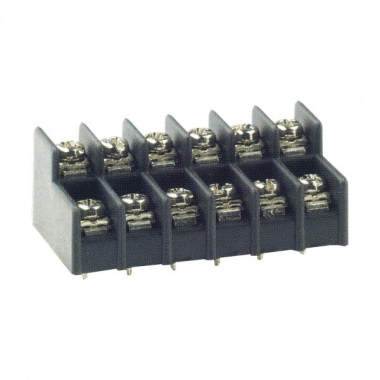

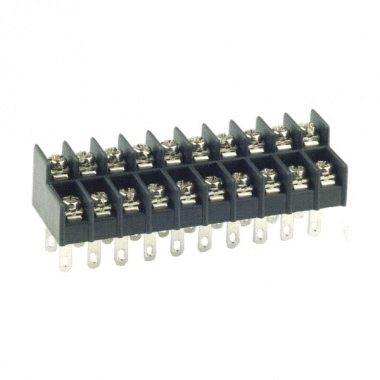

CBP110 Dual Level PCB Barrier Terminal Blocks 8.25mm pitch, 15A 300VAC


CBP110 Dual Level PCB Barrier Terminal Blocks



  1. Product Type: Barrier Strip
  2. Model Number: CBP110
  3. Rating: 15A 300VAC
  4. Body Material: PA66, Black
  5. Terminal: Brass, 0.8t, Tin Plated
  6. Screw: Steel, M3, Nickel Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~12 AWG
  11. Max. Torque Value: 10Kg/cm
  12. Poles: 2x2P~2x26P
  13. Pitch: 8.25mm
  14. Place of Origin: Taiwan



CBP110 Dual Level PCB Barrier Terminal Blocks
