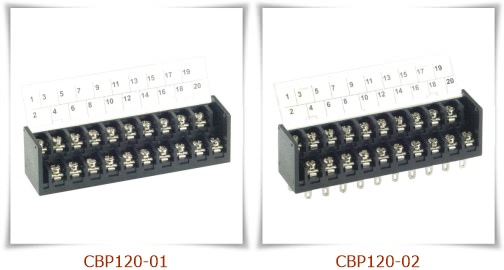

CBP120 Dual Level PCB Barrier Terminal Blocks, 7.62mm pitch, 15A 300VAC
NO： CBP120
Description： CBP120 Dual Level PCB Barrier Terminal Blocks, 7.62mm pitch, 15A 300VAC, Accepts wire range 22~14 AWG, Cover Available, 2x2P~2x30P Dual-Barrier.
  Dual Level Terminal BlocksBarrier Terminal BlocksTerminal BlocksBarrier StripsPCB Terminal Blocks

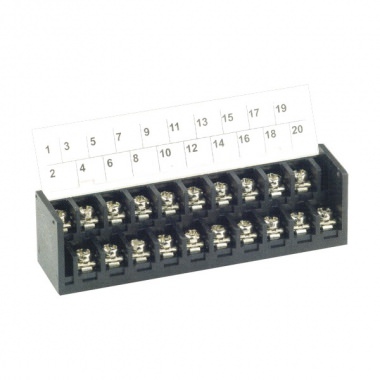

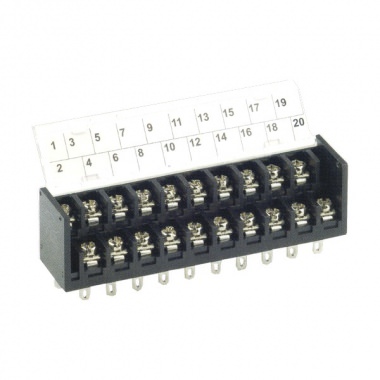

CBP120 Dual Level PCB Barrier Terminal Blocks 7.62mm pitch, 15A 300VAC


CBP120 Dual Level PCB Barrier Terminal Blocks



  1. Product Type: Barrier Strip
  2. Model Number: CBP120
  3. Rating: 15A 300VAC
  4. Body Material: PBT, Black
  5. Terminal: Brass, 0.8t, Tin Plated
  6. Screw: Steel, M3, Nickel Plated
  7. Working Temperature: -40˚C to +130˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~14 AWG
  11. Max. Torque Value: 8Kg/cm
  12. Poles: 2x2P~2x30P
  13. Pitch: 7.62mm
  14. Cover Available
  15. Place of Origin: Taiwan



CBP120 Dual Level PCB Barrier Terminal Blocks
