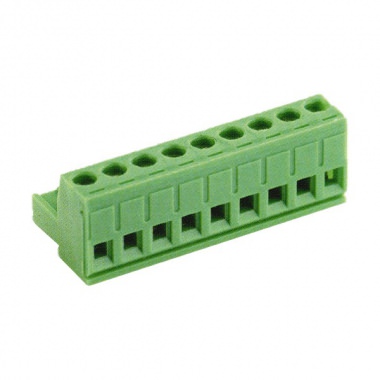

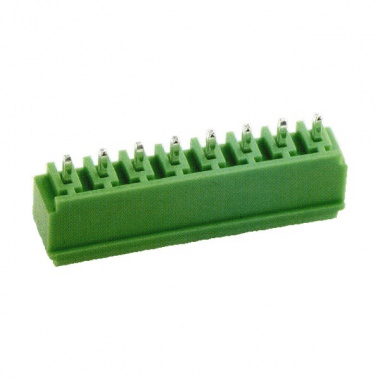

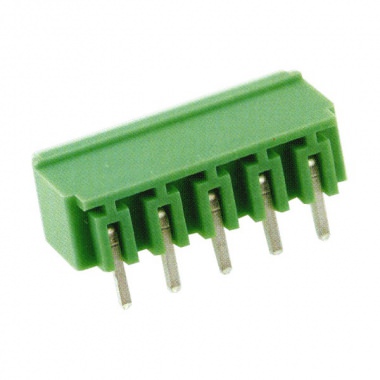

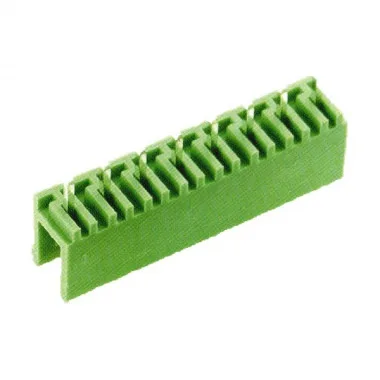

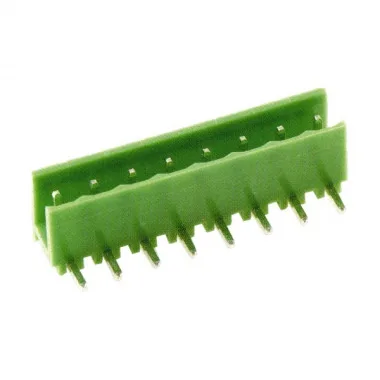

CBP1-80 Pluggable Terminal Blocks, 5mm pitch, 10A 300VAC
NO： CBP1-80
Description： CBP1-80 Series Pluggable Terminal Blocks, 5mm pitch, 10A 300VAC, Accepts wire range 24~14 AWG, 2- to 16-Pole Euro-Style PCB Terminal Blocks.
  Pluggable Terminal BlocksPCB Terminal BlocksTerminal BlocksEuro-Style PCB Terminal Blocks

CBP1-80 Pluggable Terminal Blocks 5mm pitch, 10A 300VAC


CBP1-80 Pluggable Terminal Blocks



  1. Model Number: CBP1-80
  2. Rating: 10A 300VAC
  3. Body Material: Plastic NYLON 66, Green (UL 94V-0)
  4. Contact: Phosphor Bronze, 0.4t, Nickel Plated
  5. Screw: M2.6, Steel, Zine Plated
  6. Cage clamp: Brass, 0.7t, Nickel Plated
  7. Solder Pin: Brass, Tin Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC 500V
  11. Wire Range: 24~14 AWG
  12. Screw Torque Value: 5kg/cm
  13. Poles: 2P~16P
  14. Pitch: 5mm
  15. Place of Origin: Taiwan

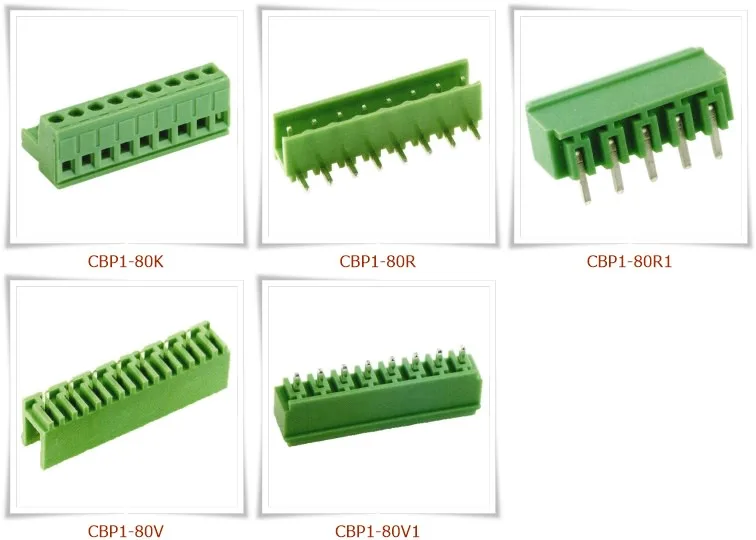

CBP1-80 Pluggable Terminal Blocks
