CBP1-381 Pluggable Terminal Blocks, 3.81mm pitch, 10A 300VAC
NO： CBP1-381
Description： CBP1-381 Series Pluggable Terminal Blocks, 3.81mm pitch, 10A 300VAC, Accepts wire range 26~16 AWG, 2- to 24-Pole Euro-Style PCB Terminal Blocks.
  Pluggable Terminal BlocksPCB Terminal BlocksTerminal BlocksEuro-Style PCB Terminal Blocks

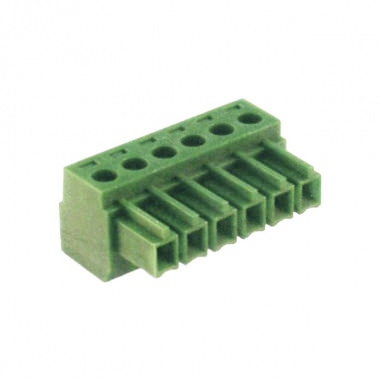

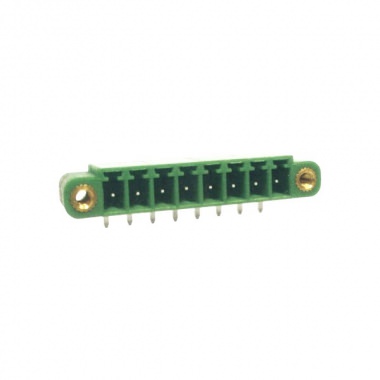

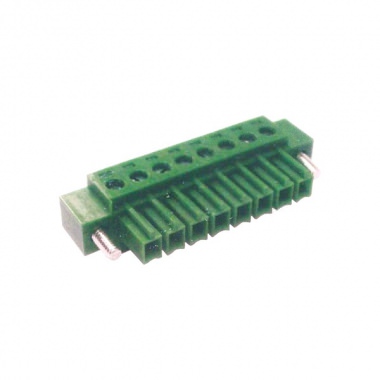

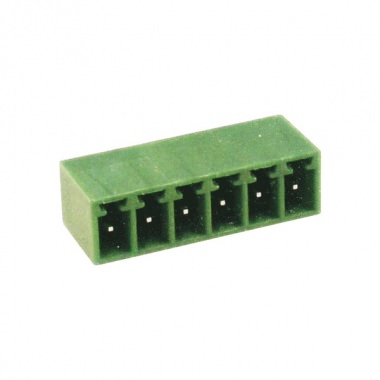

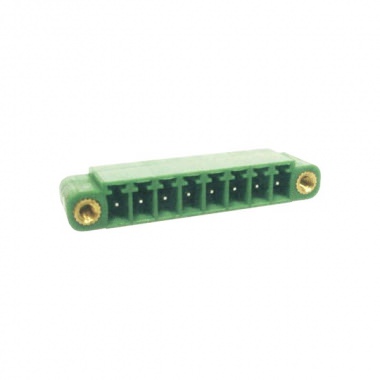

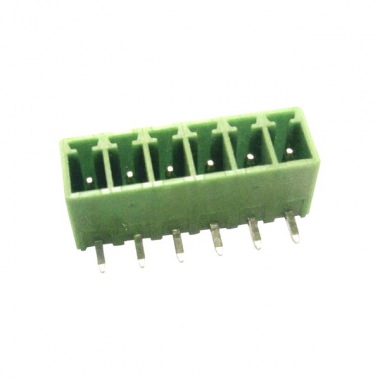

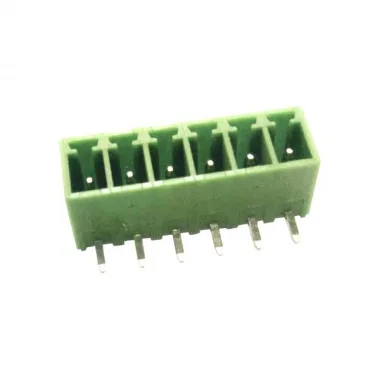

CBP1-381 Pluggable Terminal Blocks 3.81mm pitch, 10A 300VAC


CBP1-381 Pluggable Terminal Blocks



  1. Model Number: CBP1-381
  2. Rating: 10A 300VAC
  3. Body Material: Plastic NYLON 66, Green (UL 94V-O)
  4. Contact: Phosphor Bronze, 0.3t, Nickel Plated
  5. Screw: M2, Steel, Zine Plated
  6. Cage clamp: Brass, 0.7t, Nickel Plated
  7. Solder Pin: ⌈8mm Brass, Tin Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC 500V
  11. Wire Range: 26~16 AWG
  12. Screw Torque Value: 3kg/cm
  13. Poles: 2P~24P
  14. Pitch: 3.81mm
  15. Place of Origin: Taiwan



CBP1-381 Pluggable Terminal Blocks
