CBP2-HC100 Euro-Style PCB Terminal Blocks, 5mm pitch, 10A 300VAC
NO： CBP2-HC100
Description： CBP2-HC100 Euro-Style PCB Terminal Blocks, 5mm pitch, 10A 300VAC, Accepts wire range 26~16 AWG, 2-Pole and 24-Pole Euro-Style Fixed Mount.
  Euro-Style PCB Terminal BlocksPCB Terminal BlocksBarrier StripsTerminal StripTerminal Blocks

CBP2-HC100 Euro-Style PCB Terminal Blocks 5mm pitch, 10A 300VAC



  1. Model Number: CBP2-HC100
  2. Rating: 10A 300VAC
  3. Body Material: Plastic NYLON 66, Green
  4. Screw: M2.6, Steel, Zine Plated
  5. Wire Cage: Brass, 0.7t, Nickel Plated
  6. Solder Pin: Brass, 0.8t, Solder Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~16 AWG
  11. Screw Torque Value: 5kg/cm
  12. Poles: 4P & 6P
  13. Pitch: 5mm
  14. Place of Origin: Taiwan

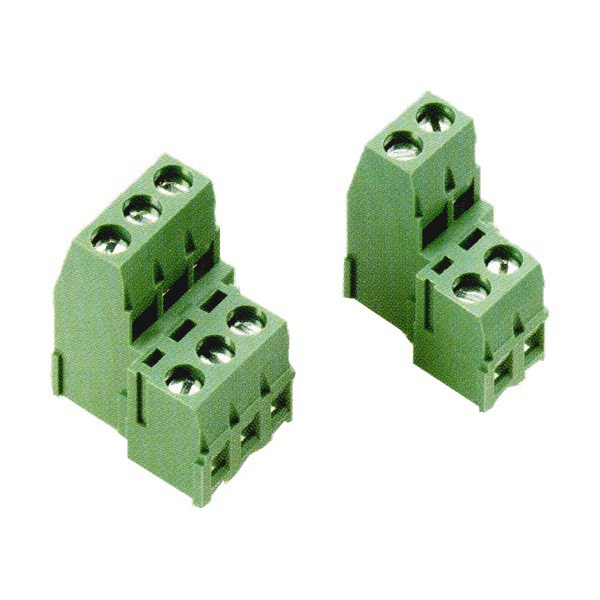

CBP2-HC100 Euro-Style PCB Terminal Blocks



CBP2-HC100 Euro-Style PCB Terminal Blocks
