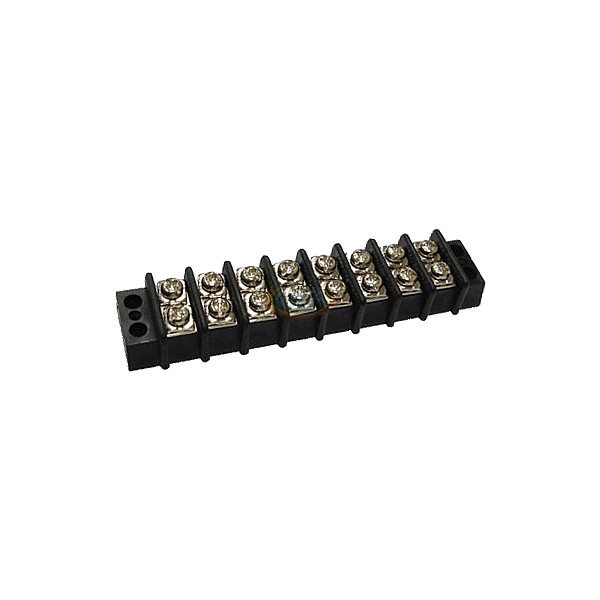

CB4-10A Double Row Terminal Blocks, 9.5mm pitch, 10A 300VAC
NO： CB4-10A
Description： CB4-10A Double Row Barrier Strips, 9.5mm pitch, 10A 300VAC, Accepts Wire Range: 12~18 AWG, 2 to 28-Pole double row panel mount terminal blocks.
  double row terminal blocksbarrier terminal blocksterminal blocksbarrier strip

Double Row Terminal Blocks, 9.5mm pitch, 10A 300VAC


Features:

  1. Barriers help prevent short circuits.
  2. Dual-Row Barrier Strips Rugged base eliminates breakage.
  3. Accepts wire Wire Range 12~18 AWG.
  4. Rated for up to 300V, 10 Amps.
  5. 9.5mm pitch, 2-28 Terminals, 2-row



Specification:

  1. Product Name: Double Row Terminal Blocks 10A
  2. Product Type: Barrier Strip, Double Row
  3. Model Number: CB4-10A
  4. Electrical Rating: 10A 300VAC
  5. Housing Material: Plastic NYLON 66 (UL 94V-0)
  6. Terminal: Brass, Nickel Plated
  7. Screw: Steel, M3, Nickel Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC500V
  11. Wire Range: 12~18 AWG
  12. Max. Torque Value: 10Kg/cm
  13. Number of Rows: 2
  14. Number of Positions: 2-28
  15. Pitch (terminal to terminal): 9.5mm
  16. Place of Origin: Taiwan

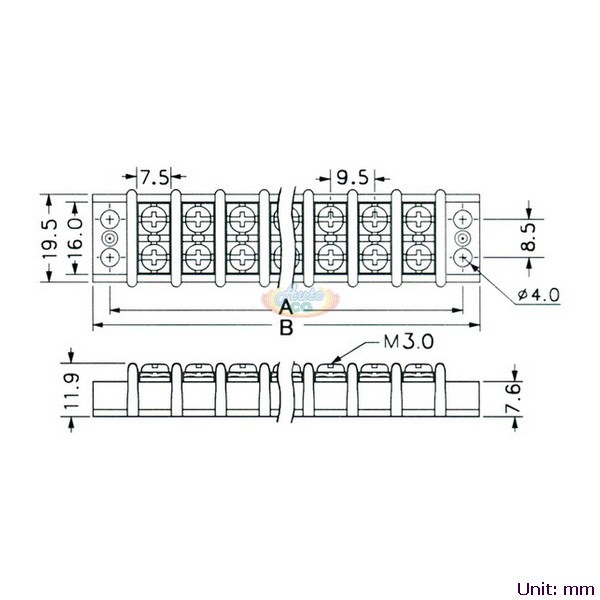

CB4-10A Double Row Terminal Blocks, 9.5mm pitch, 10A 300VAC



Poles 2 3 4 5 6 7 8 9 10
A (mm) 28.2 38 47.5 57 66.5 76 85.5 95 104.5
B (mm) 36 45.5 55 64.5 74 83.5 93 102.5 112
Poles 11 12 13 14 15 16 17 18 19
A (mm) 114 123.5 133 142.5 152 161.5 171 180.5 190
B (mm) 121.5 131 140.5 150 159.5 169 178.5 188 197.5
Poles 20 21 22 23 24 25 26 27 28
A (mm) 199.5 209 218.5 228 237.5 247 256.5 266 275.5
B (mm) 207 216.5 226 235.5 245 254.5 264 273.5 283
