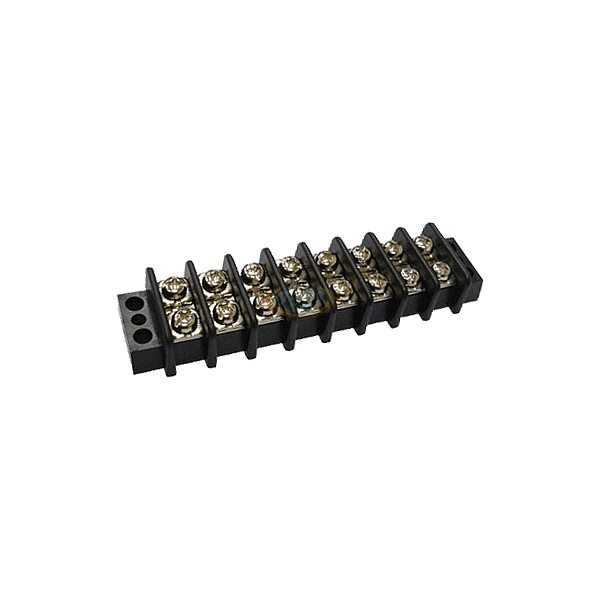

CB4-20A Double Row Terminal Blocks, 11mm pitch, 20A 300VAC
NO： CB4-20A
Description： CB4-20A Double Row Barrier Strips, 11mm pitch, 20A 300VAC, Accepts Wire Range: 12~18 AWG, 2 to 26-Pole double row panel mount terminal blocks.
  double row terminal blocksbarrier terminal blocksterminal blocksbarrier strip

Double Row Terminal Blocks, 11mm pitch, 20A 300VAC


Features:

  1. Barriers help prevent short circuits.
  2. Dual-Row Barrier Strips Rugged base eliminates breakage.
  3. Accepts wire Wire Range 12~18 AWG.
  4. Rated for up to 300V, 20 Amps.
  5. 11mm pitch, 2-26 Terminals, 2-row



Specification:

  1. Product Name: Double Row Terminal Blocks 20A
  2. Product Type: Barrier Strip, Double Row
  3. Model Number: CB4-20A
  4. Electrical Rating: 20A 300VAC
  5. Housing Material: Plastic NYLON 66 (UL 94V-0)
  6. Terminal: Brass, Nickel Plated
  7. Screw: Steel, M3.5, Nickel Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC500V
  11. Wire Range: 12~18 AWG
  12. Max. Torque Value: 12Kg/cm
  13. Number of Rows: 2
  14. Number of Positions: 2-26
  15. Pitch (terminal to terminal): 11mm
  16. Place of Origin: Taiwan

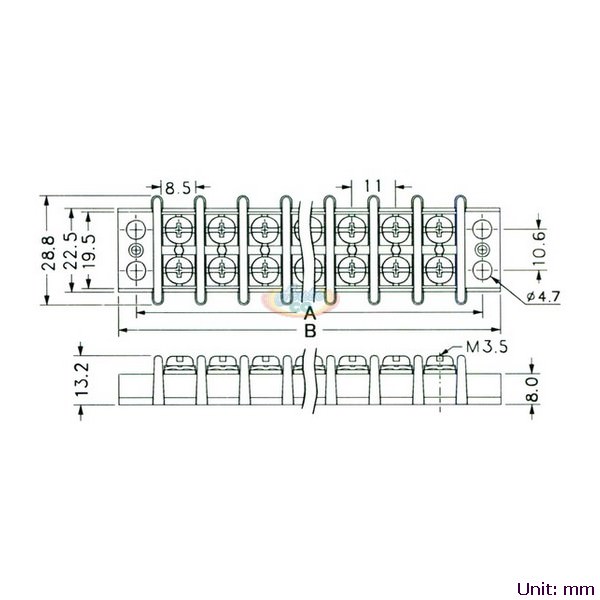

Double Row Terminal Blocks, 11mm pitch, 20A 300VAC



Poles 2 3 4 5 6 7 8 9 10
A (mm) 33 44 55 66 77 88 99 110 121
B (mm) 41 52 63 74 85 96 107 118 129
Poles 11 12 13 14 15 16 17 18 19
A (mm) 132 143 154 165 176 187 198 209 220
B (mm) 140 151 162 173 184 195 206 217 228
Poles 20 21 22 23 24 25 26
A (mm) 231 242 253 264 275 286 297
B (mm) 239 250 261 272 283 294 305
