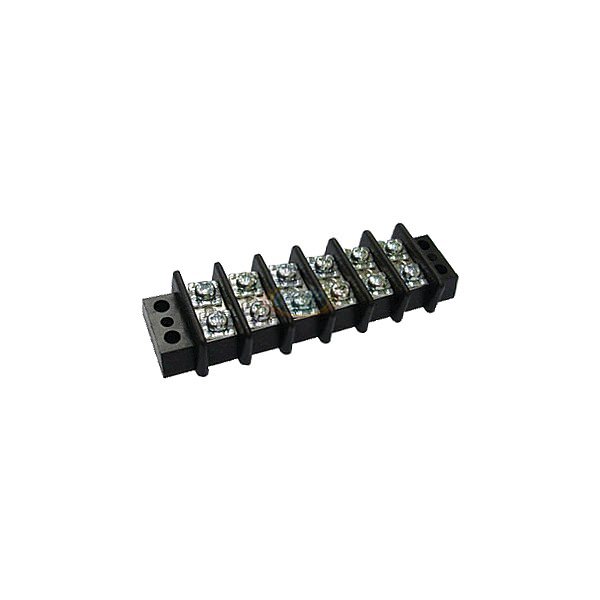

CB4-30A Double Row Terminal Blocks, 14mm pitch, 30A 300VAC
NO： CB4-30A
Description： CB4-30A Double Row Barrier Strips, 14mm pitch, 30A 300VAC, Accepts Wire Range: 12~18 AWG, 2 to 24-Pole double row panel mount terminal blocks.
  double row terminal blocksbarrier terminal blocksterminal blocksbarrier strip

Double Row Terminal Blocks, 14mm pitch, 30A 300VAC


Features:

  1. Barriers help prevent short circuits.
  2. Dual-Row Barrier Strips Rugged base eliminates breakage.
  3. Accepts wire Wire Range 12~18 AWG.
  4. Rated for up to 300V, 30 Amps.
  5. 14mm pitch, 2-24 Terminals, 2-row



Specification:

  1. Product Name: Double Row Terminal Blocks 30A
  2. Product Type: Barrier Strip, Double Row
  3. Model Number: CB4-30A
  4. Electrical Rating: 30A 300VAC
  5. Housing Material: Plastic NYLON 66 (UL 94V-0)
  6. Terminal: Brass, Nickel Plated
  7. Screw: Steel, M4, Nickel Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC500V
  11. Wire Range: 12~18 AWG
  12. Max. Torque Value: 18Kg/cm
  13. Number of Rows: 2
  14. Number of Positions: 2-24
  15. Pitch (terminal to terminal): 14mm
  16. Place of Origin: Taiwan

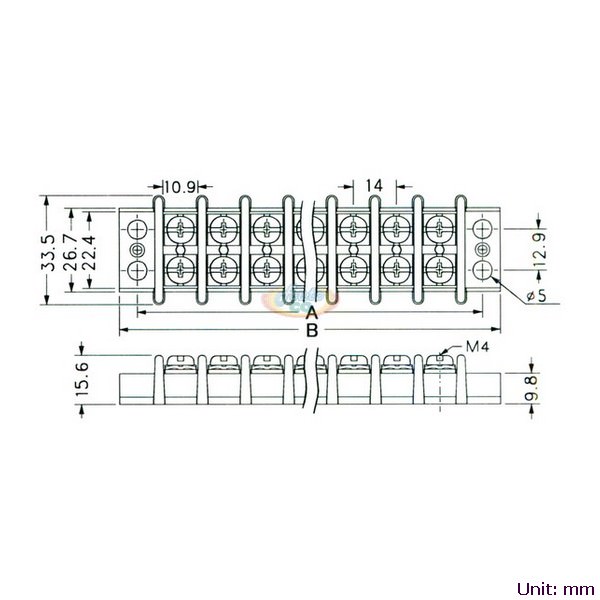

Double Row Terminal Blocks, 14mm pitch, 30A 300VAC



Poles 2 3 4 5 6 7 8 9 10
A (mm) 42 56 70 84 98 112 126 140 154
B (mm) 52 66 80 94 108 122 136 150 164
Poles 11 12 13 14 15 16 17 18 19
A (mm) 168 182 196 210 224 238 252 266 280
B (mm) 178 192 206 220 234 248 262 276 290
Poles 20 21 22 23 24
A (mm) 294 308 322 336 350
B (mm) 304 318 332 346 360
