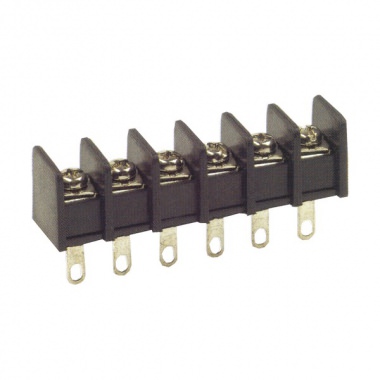

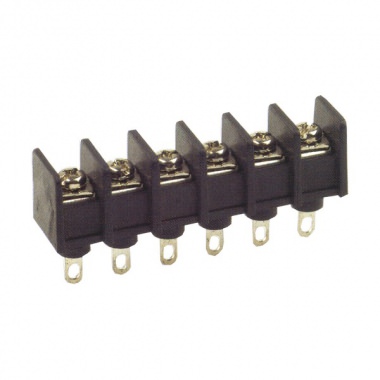

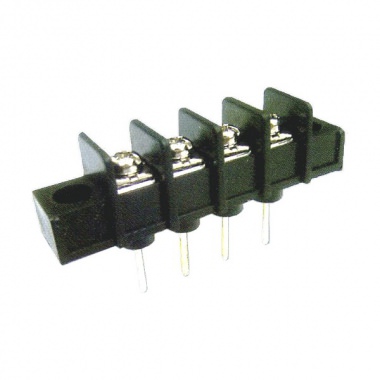

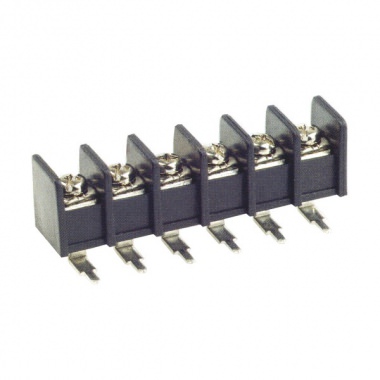

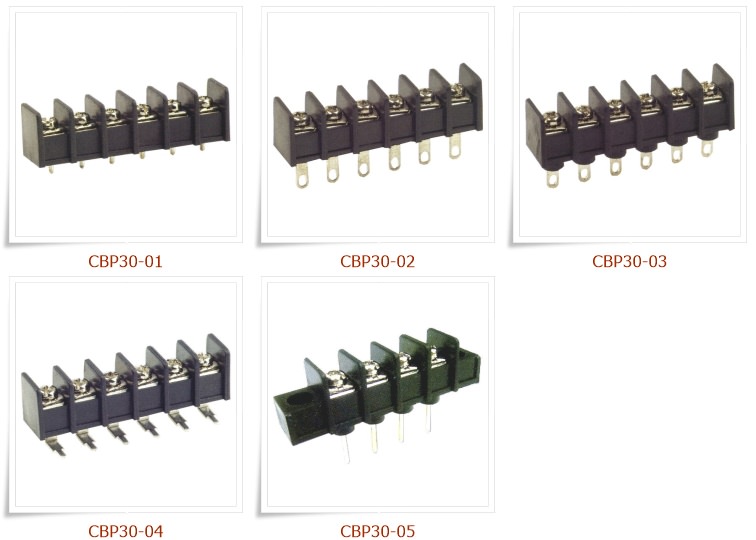

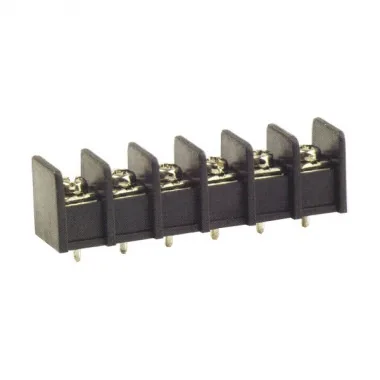

CBP30 柵欄式接線端子台，PCB端子台 11mm pitch, 30A 300VAC

1. Product Type: Barrier Strip
2. Model Number: CBP30
3. Rating: 30A 300VAC
4. Terminal: Brass, 1.0t, Tin Plated
5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
6. Screw: Steel, M4, Nickel Plated
7. Working Temperature: -40˚C to +105˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 22~12 AWG
11. Max. Torque Value: 18Kg/cm
12. Poles: 2P~29P
13. Pitch: 11mm

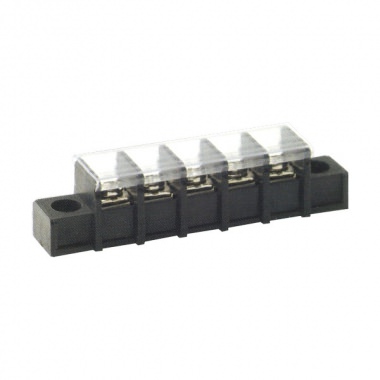

14. Cover Available
15. Place of Origin: Taiwan
