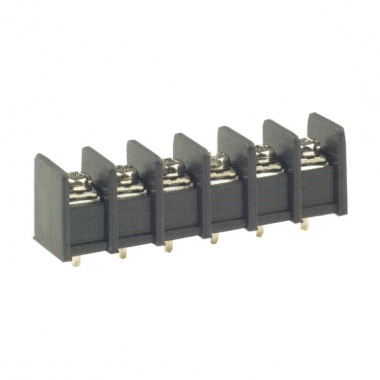

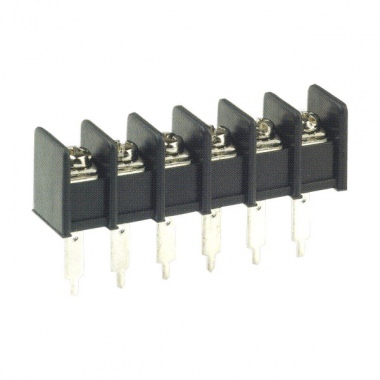

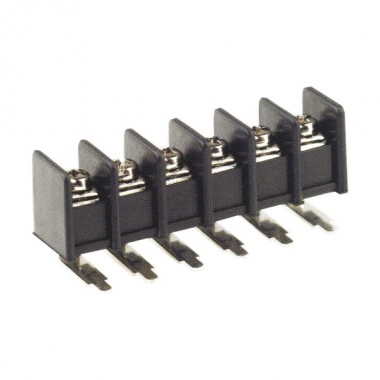

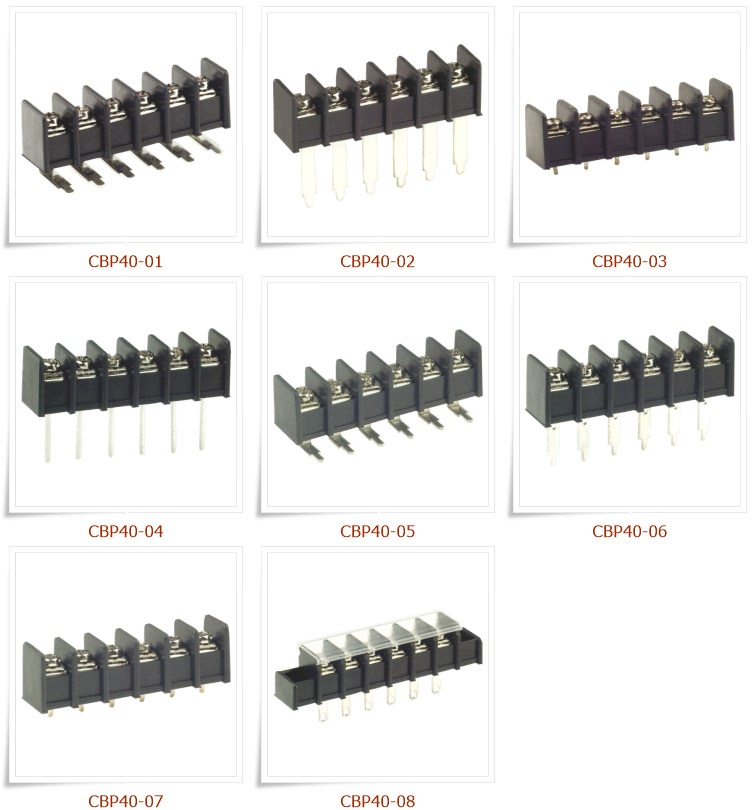

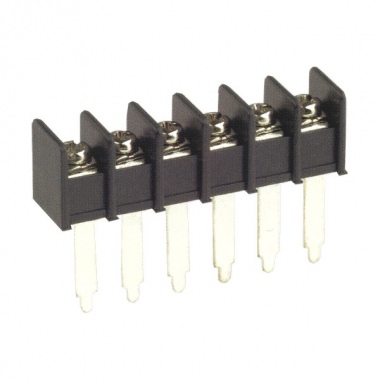

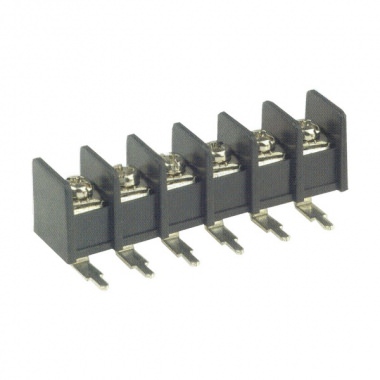

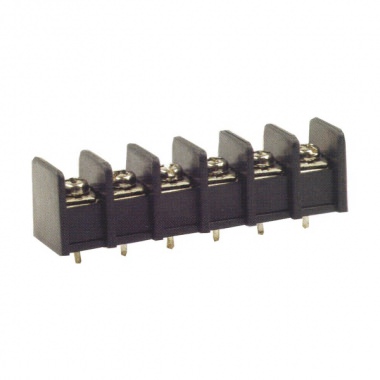

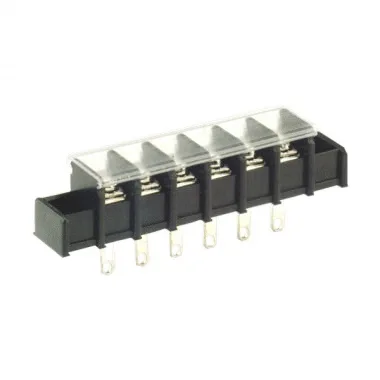

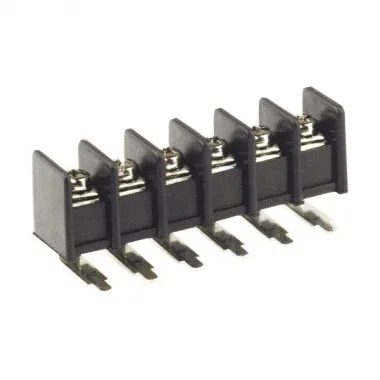

CBP40 柵欄式接線端子台，PCB端子台 10mm pitch, 20A 300VAC

1. Product Type: Barrier Strip
2. Model Number: CBP40
3. Rating: 20A 300VAC
4. Terminal: Brass, 0.8t, Tin Plated
5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
6. Screw: Steel, M3.5, Nickel Plated
7. Working Temperature: -40˚C to +105˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 22~12 AWG
11. Max. Torque Value: 12Kg/cm
12. Poles: 2P~30P
13. Pitch: 10mm

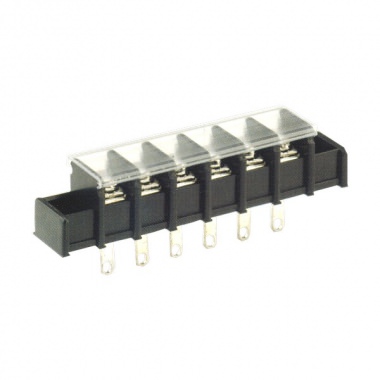

14. Cover Available
15. Place of Origin: Taiwan
