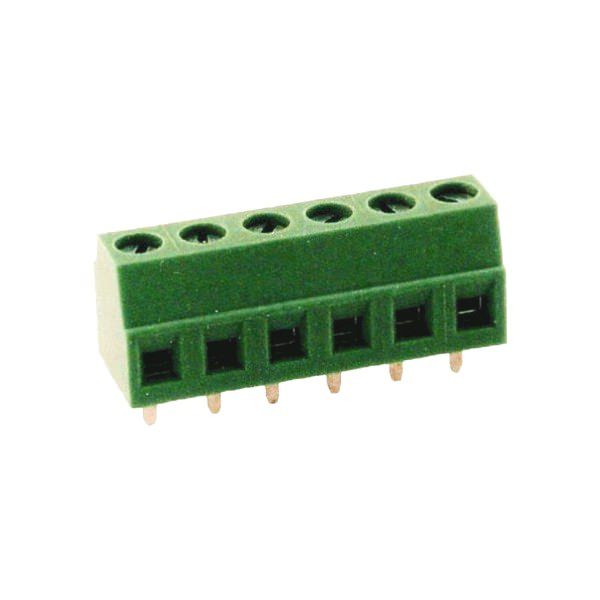

CBP2-HC381 歐式接線端子台，PCB端子台 3.81mm pitch, 10A 300VAC

1. Model Number: CBP2-HC381
2. Rating: 10A 300VAC
3. Body Material: Plastic NYLON 66, Green
4. Screw: M2, Steel, Nickel Plated
5. Wire Cage: Brass, 0.6t, Nickel Plated
6. Solder Pin: Brass, 0.5t, Tin Plated
7. Working Temperature: -40˚C to +105˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 26~16 AWG
11. Screw Torque Value: 2kg/cm
12. Poles: 2P ~ 16P
13. Pitch: 3.81mm
14. Place of Origin: Taiwan
