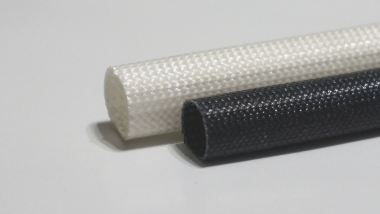

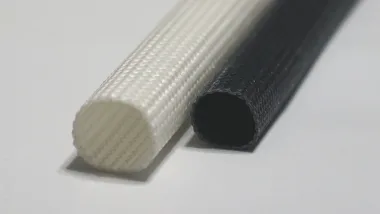

Glass fiber silicone casing is made by weaving alkali-free and dip it with special water for many times, and then vulcanize it with an approreiate high temperature.

The glass fiber silicone casing itself not only has a better electrical insulation but also has a great heat resistantance, erosion resistantance, anti-aging and heat dissipation.

Because of its excellent flexibility and springiness, it can still keep its softness when exposing to the temperature is subzero 50 degrees Celsius. Besides, it will not damage its electrical insulation when twisting or turning it because of its twist-resist skin.

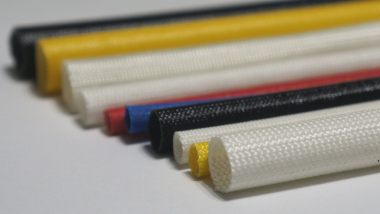

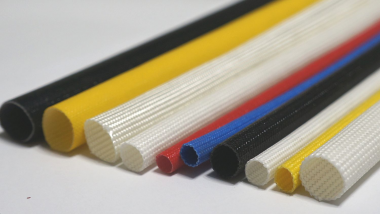

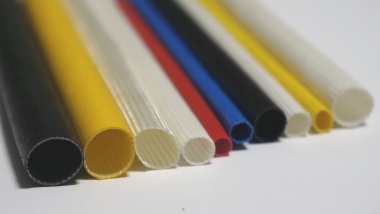

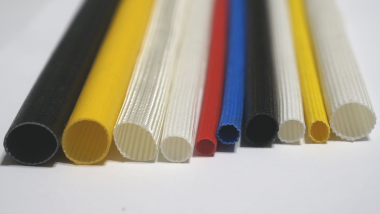

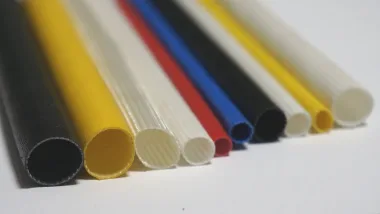

  Color

The standard color is White. ( But Red、Yellow、Blue and Black are available by special order )

  Type

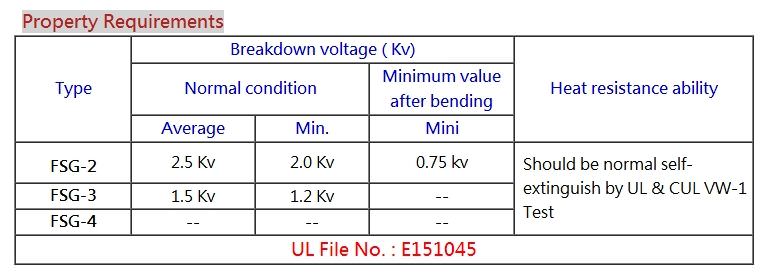

Three types are classified according to the degrees of insulation withstand voltage.

FSG-2 :  For use low voltage circuits.

FSG-3 :  For H class general insulation.

FSG-3S :  For general protection use.  (Not guaranteed for breakdown voltage)

  Length

Total length 1000mm ± 20mm.  ( Continuous length may be negotiated )
