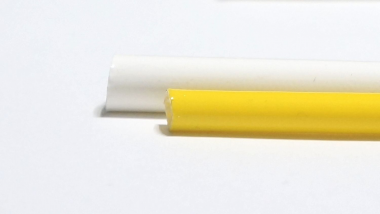

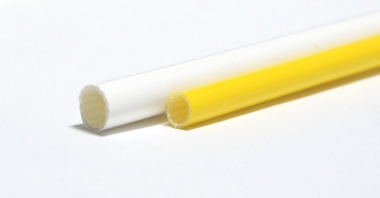

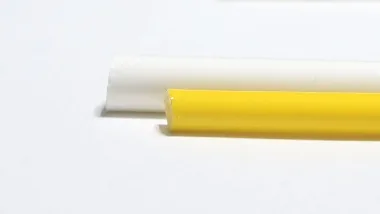

Silicone rubber glass fiber casing is made by weaving alkali-free first and then make it soft, and after that, using high temperature to completely vulcanize silicone.

Silicone rubber glass fiber casing has a good dielectric strength, and it is high and low temperature-resistant because of the characteristics of glass fiber and silicone.

All the above traits make the rubber casing be used in the motors which are in "H" level and special bulbs or household appliances to do a high degree of insulation and protection.

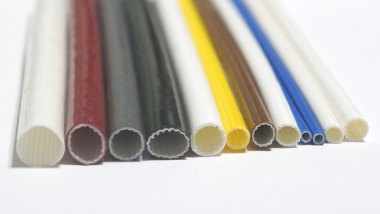

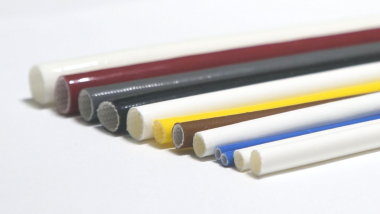

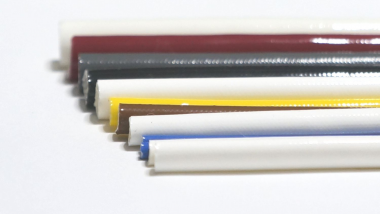

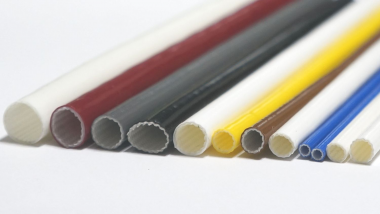

  Color

The standard color is White. ( But Red、Blue, and Black are available by special order. )

  Type

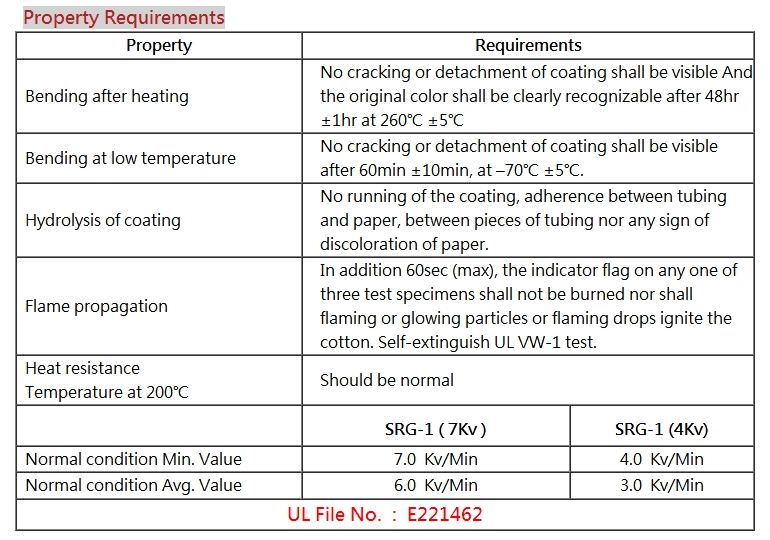

Two types are classified according to the degrees of insulation withstand voltage.

SRG-1 ( 7Kv ) :  For use high voltage circuits or H class general insulation.

SRG-1 ( 4Kv ) :  For use low voltage circuits or H class general insulation.

  Length

Total length 1000mm ±20mm. ( Continuous length may be negotiated )
