| Specifications： | chamber vacuum sealer |

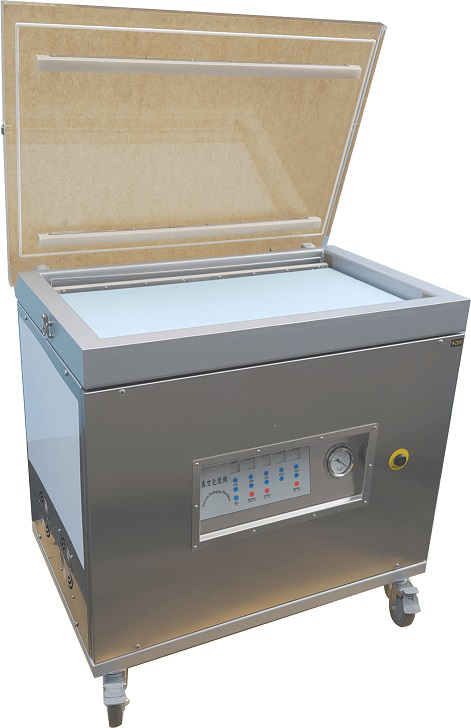

| Description： | Middle size chamber vacuum sealer |
Specifications:
|
|
|
Middle type chamber vacuum sealer |
|
Model No. |
IC-602 |
IC-612-24 |
|
Voltage/Ampere |
1PH / 220V 50Hz / 60Hz |
1PH / 220V 50Hz / 60Hz |
|
Vacuum pump capacity |
24m3/hr(1 HP) |
24m3/hr(1 HP) |
|

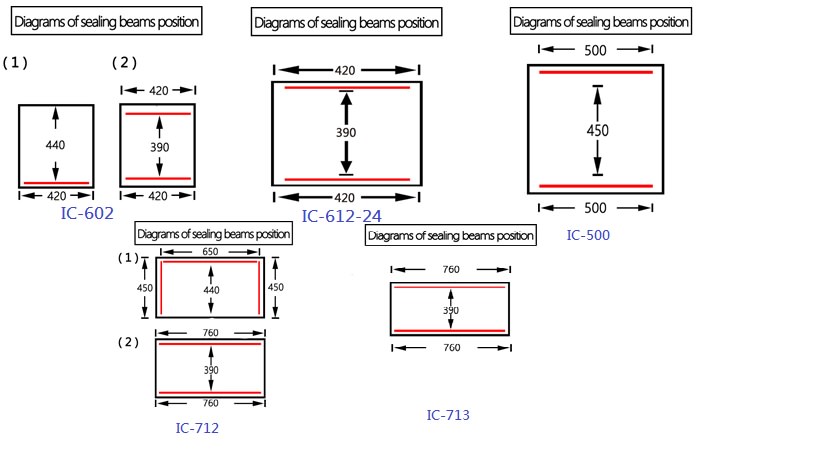

sealing bar length |
(1)420mm x 1 |
420mm x 2 |
|
NW |
90kg |
100kg |
|
machine material |
stainless #304 |
stainless #304 |
|
Chamber size |
480 x 450 x 140H(mm) |
480 x 450 x 240H(mm) |
|
machine size |
680 x 570 x 900H(mm) |
670 x 570 x 900H(mm) |
|
|
Middle type chamber vacuum sealer |
Middle type chamber vacuum sealer |
Middle type chamber vacuum sealer |
|
Model No. |
IC-500 |
IC-712 |
IC-713 |
|
Voltage/Ampere |
1PH / 220V 50Hz / 60Hz |
1PH / 220V 50Hz / 60Hz |
1PH / 220V 50Hz / 60Hz |
|
Vacuum pump capacity |
24m3/hr(1 HP) |
24m3/hr(1 HP) |
24m3/hr(1 HP) |
|
sealing bar length |
500mm x 2 |
(1)450mm x 2 / 650mm x 1 (2)760mm x 2 |
760mm x 2 |
|
NW / GW |
105kg |
165kg |
185kg |
|
machine material |
stainless #304 |
stainless #304 |
stainless #304 |
|
Chamber size |
530 x 530 x 140H(mm) |
470 x 780 x 140H(mm) |
470 x 780 x 260H(mm) |
|
machine size |
720 x 650 x 910H(mm) |
680 x 930 x 920H(mm) |
680 x 930 x 920H(mm) |
