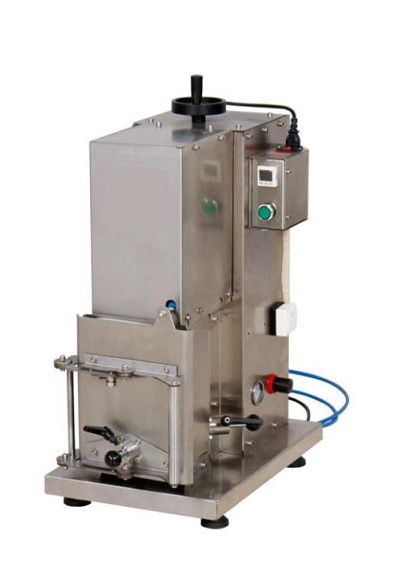

| Description： | semi-auto Glass Bottle Vacuum Capping Machine |
Working principle:
1. This machine adopts open-type fully sealed vacuum chamber structure, only equipping with low-power
vacuum pump can achieve high vacuum degree
2. Adopting vacuum detection control program and the digital vacuum sensor, cover is screwed after vacuum
degree reaches the settings. thus guarantee each bottle is of reliable vacuum degree.
3. Adopt pneumatic and air pressure adjustment to ensure high-quality capping effect.
Specifications:
|
Power supply |
110/220V, 50/60Hz, Single phase |
|
Capping speed |
3-20 times / minute |
|
vacuum pump |
1 HP |
|
Cap diameter |
35mm-80mm |
|
Bottle height |
55mm-190mm |
|
Bottle diameter |
40mm-145mm |
|
maximal vacuum degree |
-90KPa (adjustable) |
|
Air pressure source |
0.4-0.7Mpa (must be used with air compressor by user) |
|
Machine size: |
500 x 330 x 785mm (main body, not including vacuum pump) |
|
Weight |
60kg |
Applications:
Various canned foods such as hot sauce, tahini, jam, glass bottles
