EtherCAT CNC control system, economical, multi-axis motion control and support standard G / M-Code!

• Built-in industrial Ethernet ,EtherCAT Master.
• Prospective control
• Support Non-orthogonal coordinate system simultaneous machining.
• Various machining tolerance corrections.
• Variable speed in motion.
• Support various brands of EtherCAT servo motors.
• Support various brand I/O modules.
• Backup motor and I/O parameters.
• Controllable number of axes > 32 axes.
• Real-time web page man-machine interface - display can be smart phone / iPAD / LCD.
• B2A-Spec.
• AM3357 800MHz ARM Cortex A8
• 512MB DDR3L@400MHz RAM
• 4GB 8-bit eMMC on-board flash storage
• 1x microSD
• NEON floating-point accelerator
• 1x micro USB 2.0 client (USB0) for power and communication
• 1x USB 2.0 host (USB1), TYPE A socket
• 2x Ethernet 10/100MHz
• Power Consumption: 3.6W
• Dimension: 105.0 x 60.0 x 31.2 mm

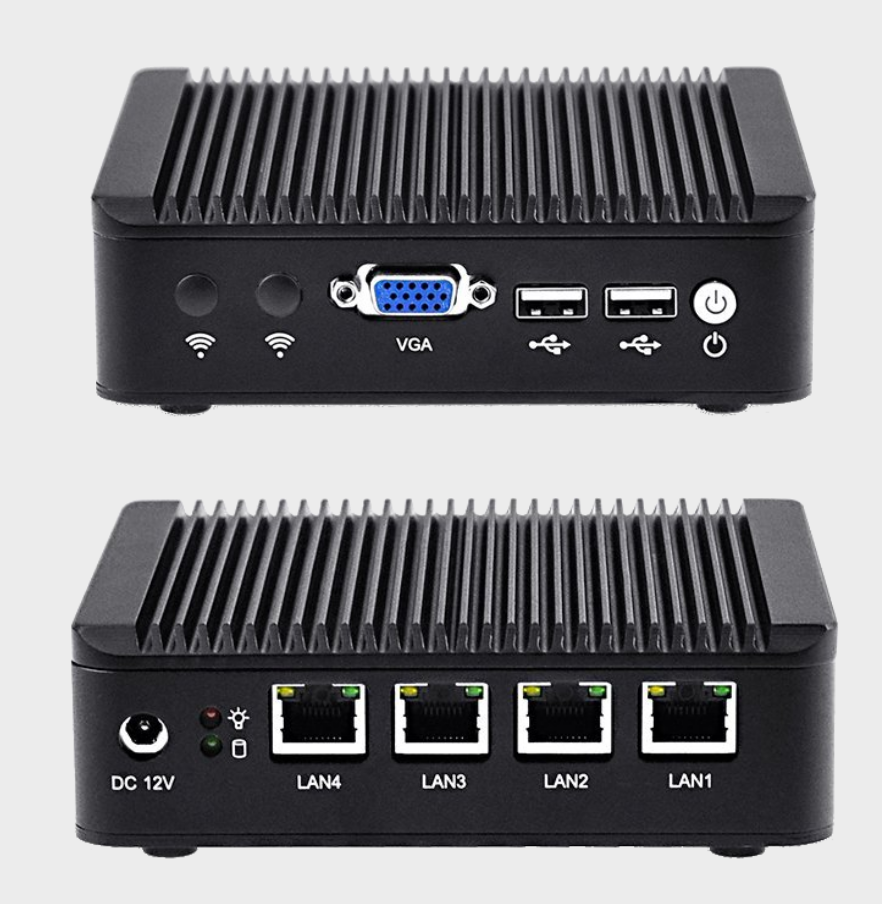

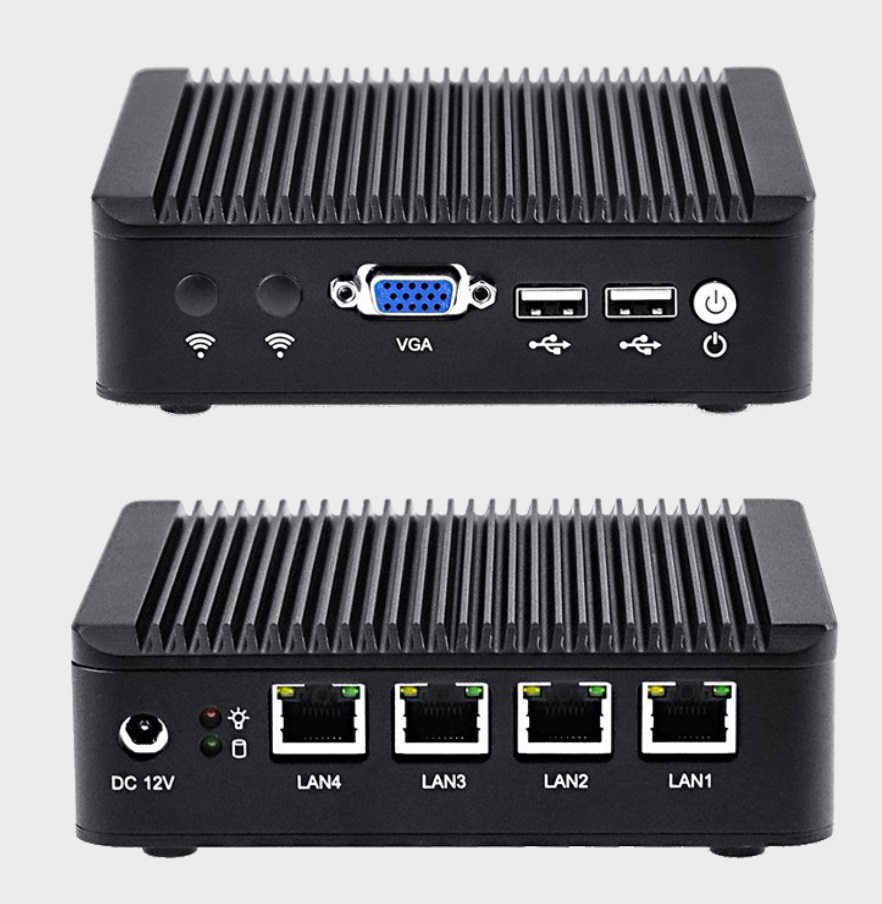

• X86 PC Spec.
• Dimension :
  • 134x126x38mm
• Onboard CPU :
  • Intel Celeron Processor J1900 |
• Front-Panel Connectors:
  • Power on/off
  • Power LED
  • 2 x USB 2.0 Ports
  • 1 x VGA Port
  • WiFi
• Back-Panel Connectors
  • 1 × DV 12V input
  • Power LED, HDD LED
  • LAN1 (EtherCAT)
  • LAN2 (Reserved for EtherCAT)
  • LAN3 (Reserved for Ethernet)
  • LAN4 (Ethernet) (ip: 192.168.7.2)
