CXP13025L
型號: 壓電式蜂鳴器
規格: OD13*2.5mm,9Vp-p,Freq.:4.8KHz
描述: PIEZO BUZZER,External Drive Piezo Buzzer

A. SCOPE
     This specification applies piezo buzzer,
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 4800 square wave
2 Operating Voltage Vp-p 1 ~25
3 Rated    Voltage Vp-p 9
4 Current    Consumption mA MAX. 5 at Rated    Voltage
5 Sound Pressure Level dB MIN. 80 at 10cm at    Rated Voltage
6 Electrostatic Capacity pF 15000±30% at 100Hz    1V
7 Housing Material   ABS ( Black )

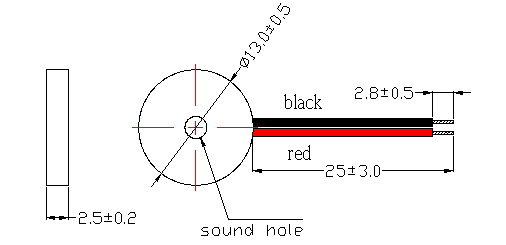

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.3
