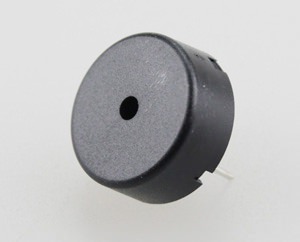

CXP1780
型號: 壓電式蜂鳴器
規格: OD17*8.0mm,9Vp-p,Freq.:4KHz
描述: PIEZO BUZZER,External Drive Piezo Buzzer

A. SCOPE
     This specification applies piezo buzzer,
B. SPECIFICATION

No. Item Unit Specification Condition
1 Oscillation Frequency Hz 4000 square wave
2 Operating Voltage Vp-p 1 ~25
3 Rated    Voltage Vp-p 9
4 Current    Consumption mA MAX. 5 at Rated    Voltage
5 Sound Pressure Level dB MIN. 80 at 10cm    at Rated Voltage
6 Electrostatic Capacity pF 15000±30% at 100Hz    1V
7 Housing Material   PPO( Black )

C. APPEARANCE DRAWING



Unit :mm  Tol: ±0.3
