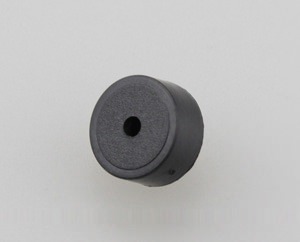

CXP13060
型號: | 壓電式蜂鳴器 |
規格: | OD13*6.0mm,3Vp-p,Freq.:4KHz |
描述: | PIEZO BUZZER,External Drive Piezo Buzzer |
A. SCOPE
This specification applies piezo buzzer,
B. SPECIFICATION
No. | Item | Unit | Specification | Condition |
1 | Oscillation Frequency | Hz | 4000 | square wave |
2 | Operating Voltage | Vp-p | 1 ~25 | |
3 | Rated Voltage | Vp-p | 3 | |
4 | Current Consumption | mA | MAX. 5 | at Rated Voltage |

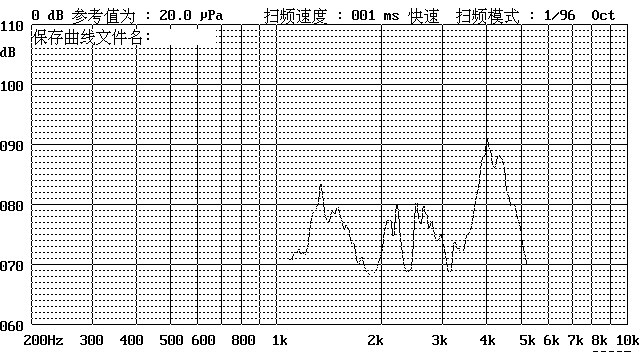

5 | Sound Pressure Level | dB | MIN. 70 | at 10cm at Rated Voltage |
6 | Electrostatic Capacity | pF | 12000±30% | at 100Hz 1V |
7 | Housing Material | PPO( Black ) |
C. APPEARANCE DRAWING
Unit :mm Tol: ±0.5
