CX9055C
| 型號： | 電磁式蜂鳴器 |
| 規格： | OD9*5.5mm,5VDC,Freq.:2.7KHz |

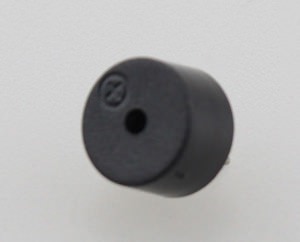

| 描述： | BUZZER, self Drive Magnetic Buzzer |
| No. | Item | Unit | Specification | Condition |
| 1 | Oscillation Frequency | KHz | 2.7 ± 0.3 | |
| 2 | Operating Voltage | VDC | 3~ 7 | |
| 3 | Rated Voltage | VDC | 5 | |
| 4 | Current Consumption | mA | MAX. 30 | at Rated Voltage |
| 5 | Sound Pressure Level | dB | MIN. 82 | at 10cm at Rated Voltage |
| 6 | Weight (MAX) | gram | 0.8 | |
| 7 | Housing Material | PBT ( Black ) |

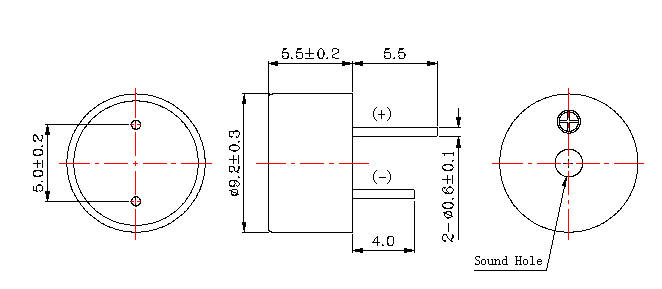

Unit :mm Tol: ±0.5
