CX5050017-12R(3.6V)-4000-F
型號: SMD BUZZER
規格: 5*5*1.7mm,3.36Vo-p,Freq.:4KHz
描述: SMD BUZZER External Drive Magnetic Buzzer mini buzzer 蜂鳴器
No. Item Unit Specification Condition
1 Oscillation Frequency Hz 4000 Vo-p=1/2duty , square wave
2 Operating Voltage Vo-p 2~4
3 Rated Voltage Vo-p 3.6
4 Current Consumption mA MAX.130 at Rated Voltage

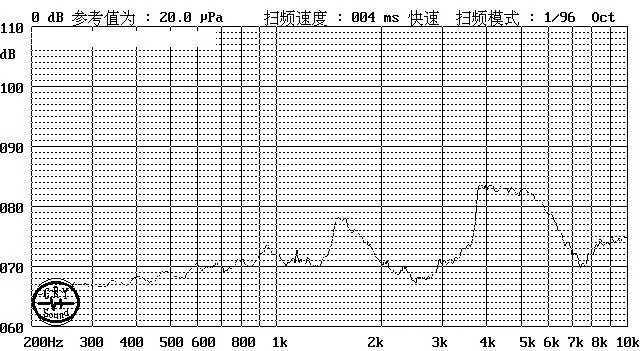

5 Sound Pressure Level dB MIN. 75 at 10cm at Rated Voltage
6 Coil Resistance (Ω)   12±3
7 Weight (MAX) gram
8 Housing Material   LCP( Black )
Top(Brass))

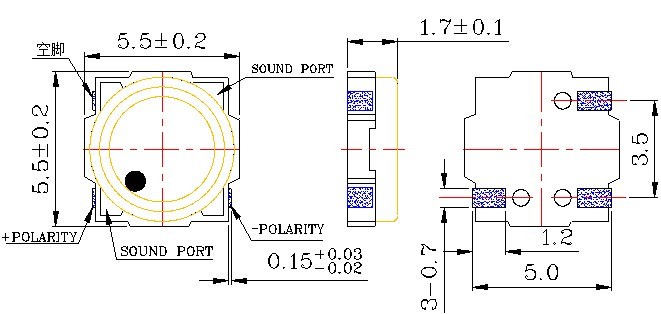

Unit :mm  Tol: ±0.5
