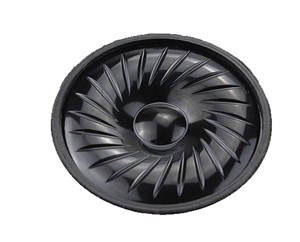

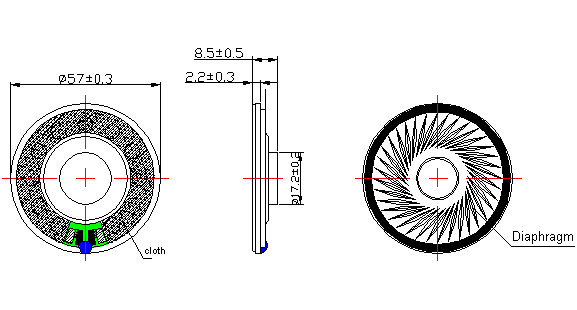

CXS57085-R08W0.5-B |
|
| Rated/Max Input Power. | 0.5W /1.0W |
| Rated Impedance. | 8Ω ± 15% |

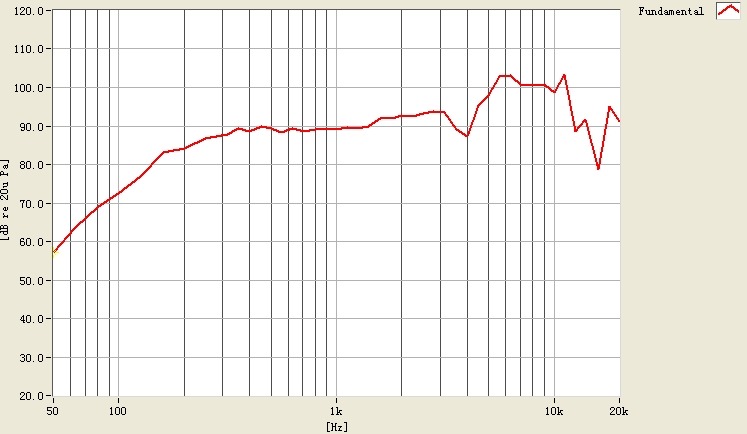

| Sound Pressure Level. | 89 ± 3 dB（0.1W/0.1m）at AVE 0.8K 1.0K 1.2K 1.5K Hz |
| Resonance Frequency (Fo). | 200±20﹪Hz |
| Frequency Range. | F0~10kHz. |
