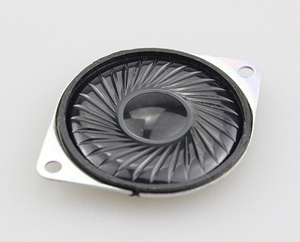

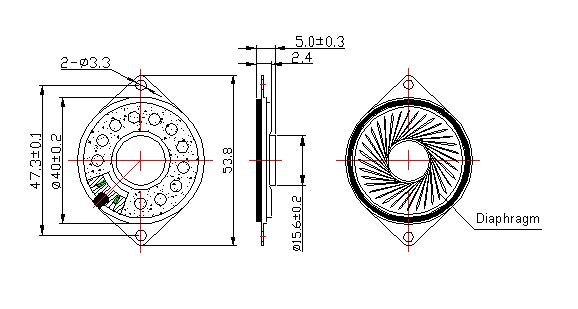

CXS40050-R08W1.0-D1 |
|
| Rated/Max Input Power. | 1.0W /1.5W |
| Rated Impedance. | 8Ω ± 15% |

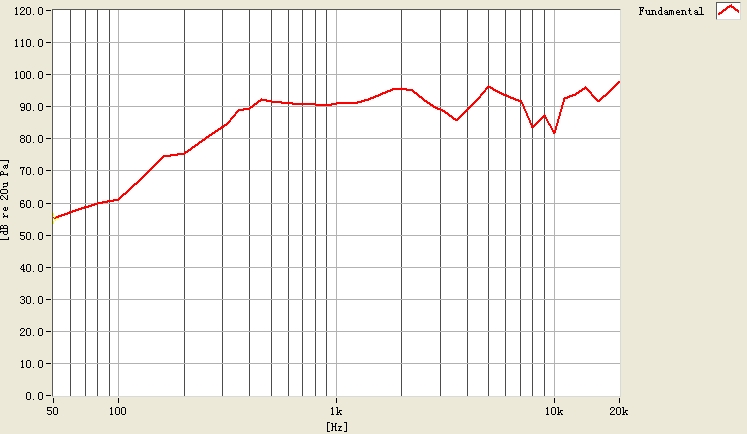

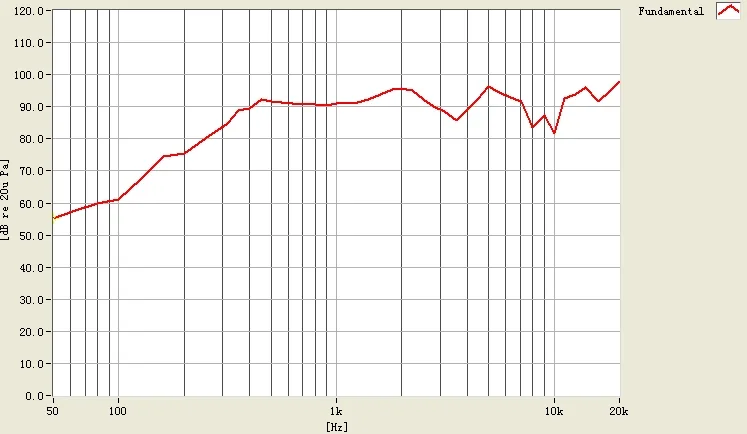

| Sound Pressure Level. | 92 ± 3 dB（0.1W/0.1m）at AVE 0.8K 1.0K 1.2K 1.5K Hz |
| Resonance Frequency (Fo). | 500±20﹪Hz |
| Frequency Range. | F0~10kHz. |
