CXS1609030-R08W0.5-513

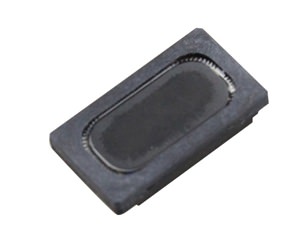

| 型號： | Miniature SPEAKER |

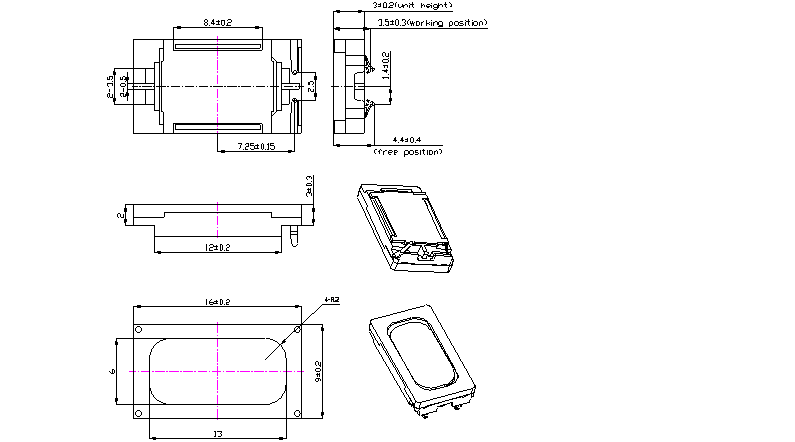

| 規格： | 16*9*3.0mm,8ohm/0.5W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1609030-R08W0.5-513 |
|
| Rated Input Power. | 0.5W |
| Rated Impedance. | 8Ω ± 15% |

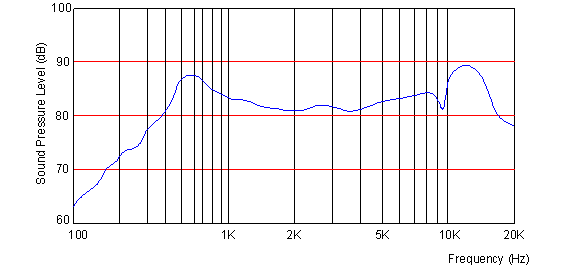

| Sound Pressure Level. | 87dB(0.5W0./0.1m)±3dB at AVE 1.0;1.2;1.5;2.0KHz |
| Resonance Frequency (Fo). | 550±20%Hz (in free air) |
| Frequency Range. | 800±20%Hz (in 1.0cc box) |
