CXS1318025-R08W0.7-F21-C01

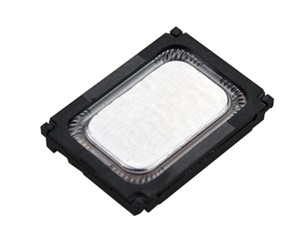

| 型號： | Miniature SPEAKER |

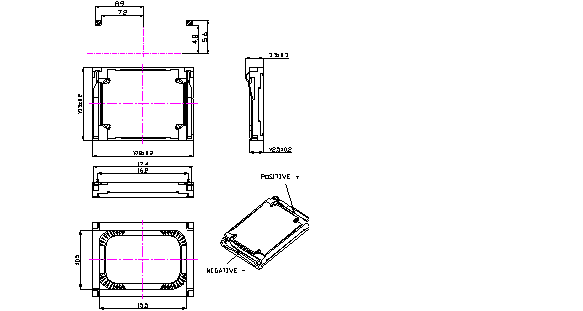

| 規格： | 13*18*2.5mm,8ohm/0.7W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1318025-R08W0.7-F21-C01 |
|
| Rated Input Power. | 0.7W |
| Rated Impedance. | 8Ω ± 15% |

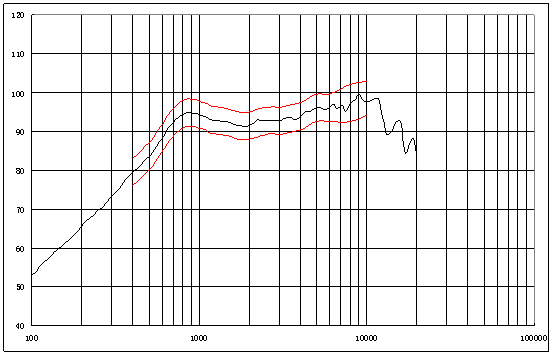

| Sound Pressure Level. | 93dB(0.7W0./0.1m) ± 3 dB at 2.0K Hz |
| Resonance Frequency (Fo). | 380±20%Hz (in free air) 700±20%Hz (in 1.0cc box) |
| Frequency Range. | F0~20kHz. |
