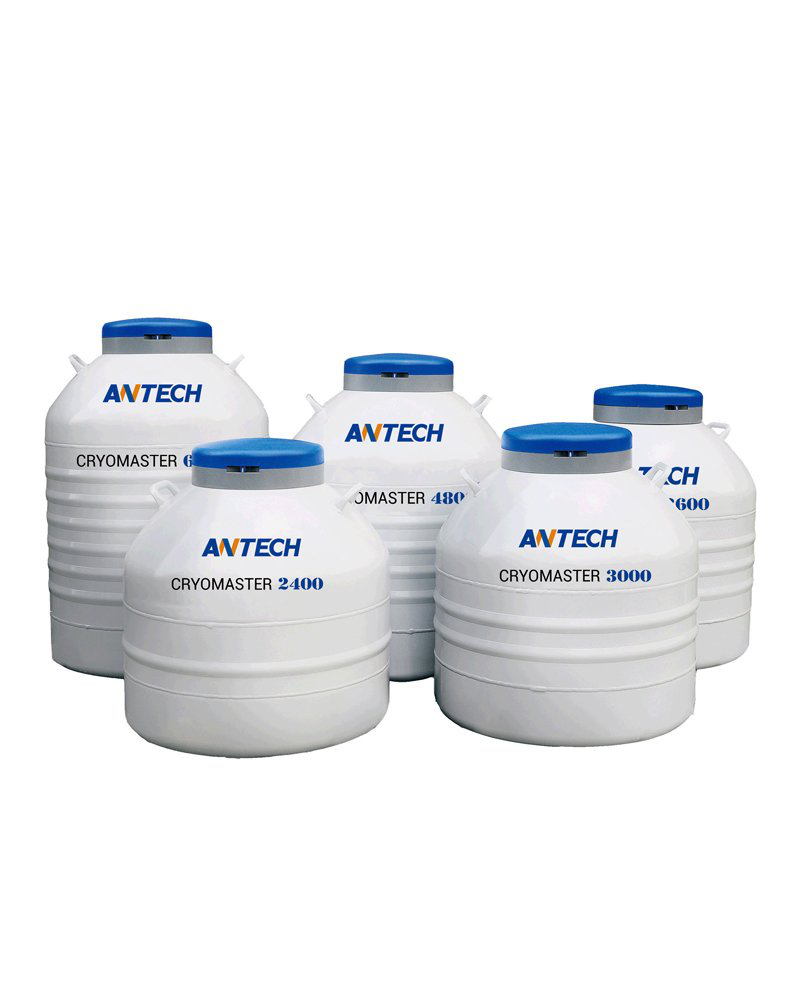

CryoMaster Series liquid nitrogen containers combine with the advantages of low liquid nitrogen consumption and medium range storage capacity to meet unique requirements of professional customers all over the world.
CryoMaster Series containers provide high efficiency of large capacity sample cryopreservation with light weight and small space occupying. The racks and lockable lids are standard to assure the safety of samples. Mainly apply to medical field/bio-bank/laboratory field
| Model | CryoMaster 100 | CryoMaster 600 | CryoMaster 750 | CryoMaster 900 | |
| Maximum Storage capacity | |||||
| 1.2 &2ml Vials | 1.2 &2ml Vials (25/box) | 100 | 600 | 750 | 900 |
| Number of Racks | 1 | 6 | 6 | 6 | |
| Boxes Per Rack | 4 | 4 | 5 | 6 | |
| 25ml blood bag | 25ml blood bag | —— | 36 | 36 | 54 |
| Number of Racks | —— | 18 | 18 | 18 | |
| No. of Blood bags Per Rack | —— | 2 | 2 | 3 | |
| Performance | |||||
| LN2 Capacity (L) | 10 | 30 | 35 | 50 | |
| Static Evaporation Rate (L/day) | 0.42 | 0.33 | 0.36 | 0.43 | |
| Static holdover time (day) | 24 | 90 | 97 | 115 | |
| Unit Dimension | |||||
| Neck Opening (mm) | 125 | 125 | 125 | 125 | |
| Overall Height (mm) | 554 | 705 | 748 | 754 | |
| Outer Diameter (mm) | 300 | 462 | 462 | 462 | |
| Weight Empty (KG) | 5.9 | 12.9 | 14.2 | 15.2 | |
| Model | CryoMaster 2400 | CryoMaster 3000 | CryoMaster 3600 | CryoMaster 4800 | CryoMaster 6000 | |
| Maximum Storage capacity | ||||||
| 1.2 &2ml Vials | 1.2 &2ml Vials (25/box) | 2400 | 3000 | 3600 | 4800 | 6000 |
| Number of Racks | 6 | 6 | 6 | 6 | 6 | |
| Boxes Per Rack | 4 | 5 | 6 | 8 | 10 | |
| 25ml blood bag | 25ml blood bag | 60 | 60 | 90 | 120 | 150 |
| Number of Racks | 30 | 30 | 30 | 30 | 30 | |
| No. of Blood bags Per Rack | 2 | 2 | 3 | 4 | 5 | |
| 50 ml blood bag | 50ml blood bag | —— | 60 | 90 | 120 | 150 |
| Number of Racks | —— | 30 | 30 | 30 | 30 | |
| No. of Blood bags Per Rack | —— | 2 | 3 | 4 | 5 | |
| Performance | ||||||
| LN2 Capacity (L) | 65 | 95 | 115 | 145 | 175 | |
| Static Evaporation Rate (L/day) | 0.78 | 0.97 | 0.94 | 0.96 | 0.95 | |
| Static holdover time (day) | 83 | 98 | 122 | 151 | 184 | |
| Unit Dimension | ||||||
| Neck Opening (mm) | 216 | 216 | 216 | 216 | 216 | |
| Overall Height (mm) | 765 | 790 | 870 | 960 | 1060 | |
| Outer Diameter (mm) | 681 | 681 | 681 | 681 | 681 | |
| Weight Empty (KG) | 38.3 | 41.3 | 42.3 | 48.9 | 53.8 | |
